Visrez Floor Plan Builder

Thousands of Catering & Events Professionals, Sales teams and venue operators use Visrez to create professional standard 3D Event Plans. Visrez has grown by word of mouth with no outside investment thanks to the support of our clients worldwide. Our team is constantly improving Visrez based on user feedback and we release new product features every month which go directly to all users regardless.

Drag & Drop

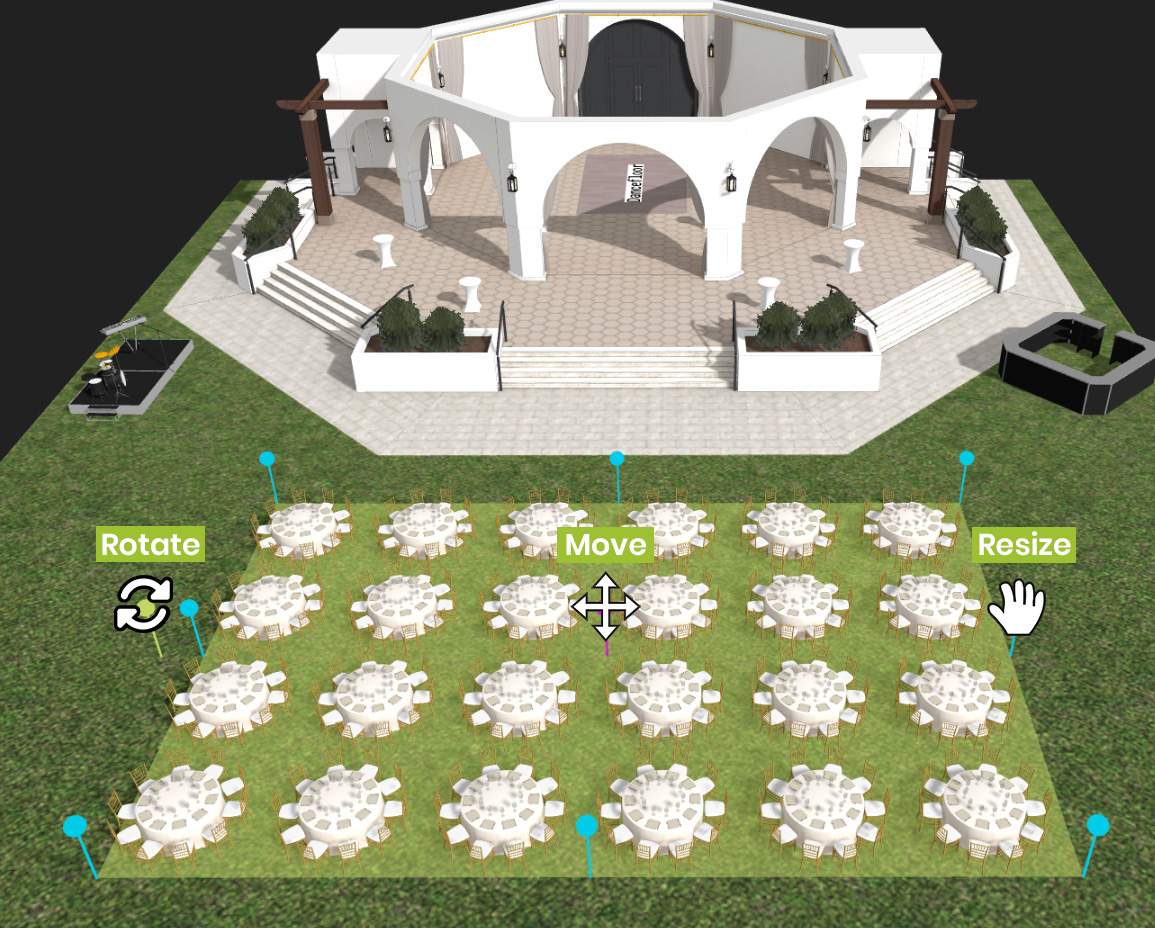

Super Easy Controls – ‘Expand, Reduce, Move, Space, Rotate’


The latest release combines the blue expand circles with the move and rotate tools. Now by clicking on any single object or block of objects in your plan you can increase that block using the blue expand circles.

Draw Styles


The Build Tool allows users to create plans in many different ways and is fun to work with. Users can specify the exact number of objects or draw with the mouse to fill the space. Sliders adjust the front to back or side to side spacing and you can also set the Aisle spacing or inner diameter for circle or semi-circle layouts.

Leaving the number field empty allows you to draw a set-up by clicking and dragging the mouse inside the spаce. You can increase or decrease the selected area using the blue markers to add more objects.

All styles can be adjusted using the layout style buttons and the object spacing allows you to increase or decrease the amount of spacing between furniture. Once the set looks good, click  Save or Clear to start over.

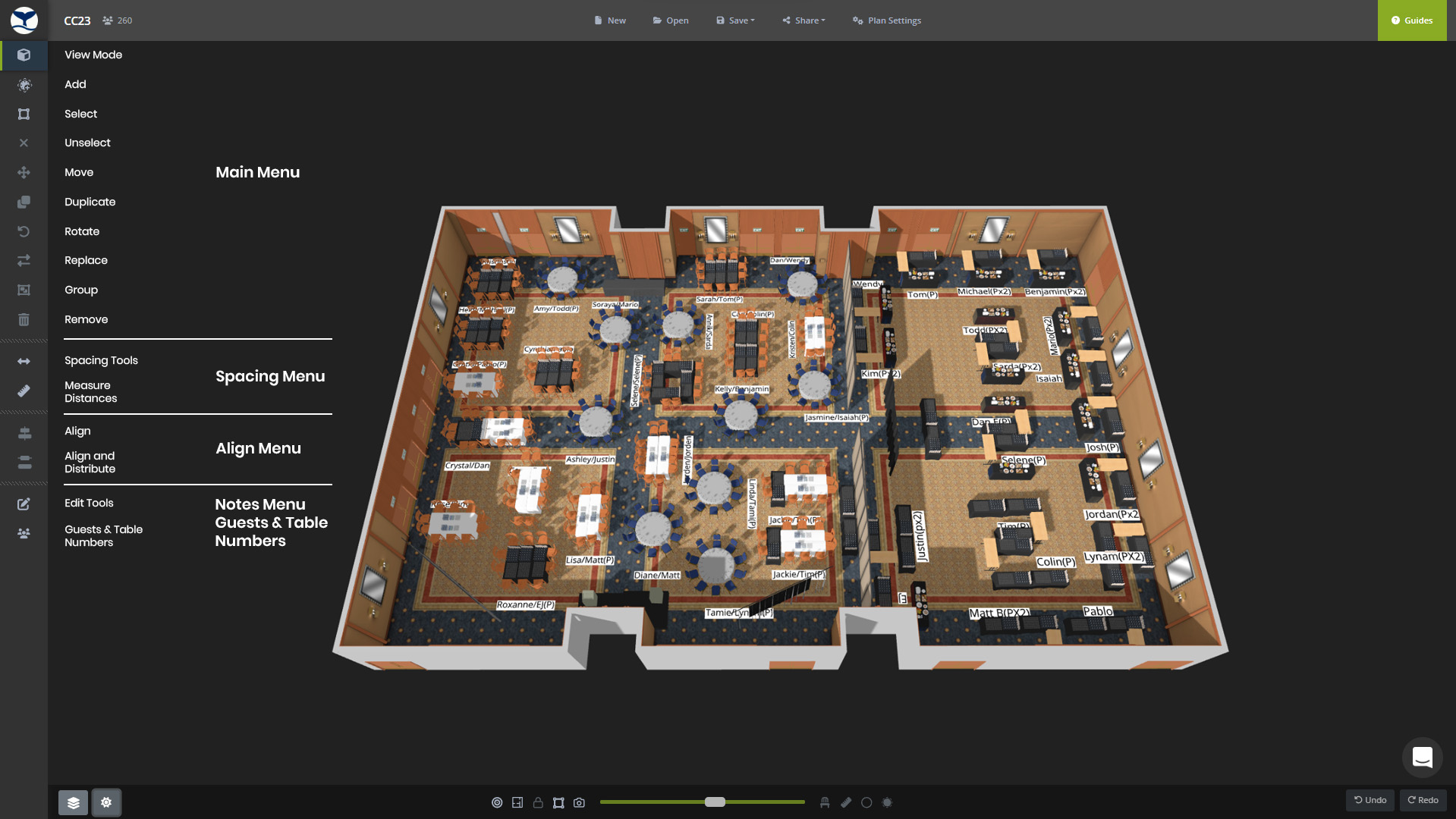

Main Menu Controls

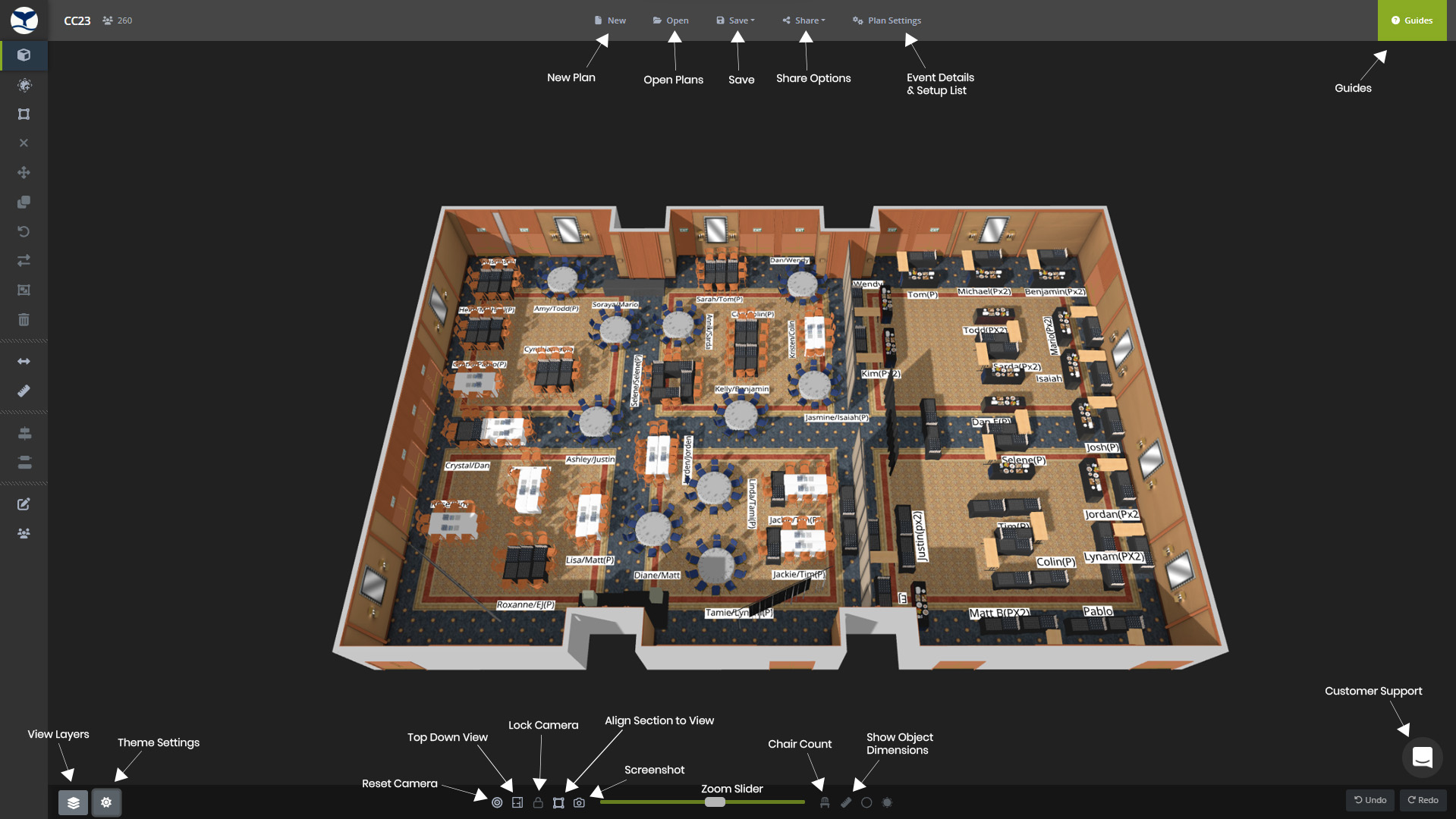

Upper & Lower Menus


Video Tutorials


In the top right corner you will see the User Guides which explains everything about the builder.

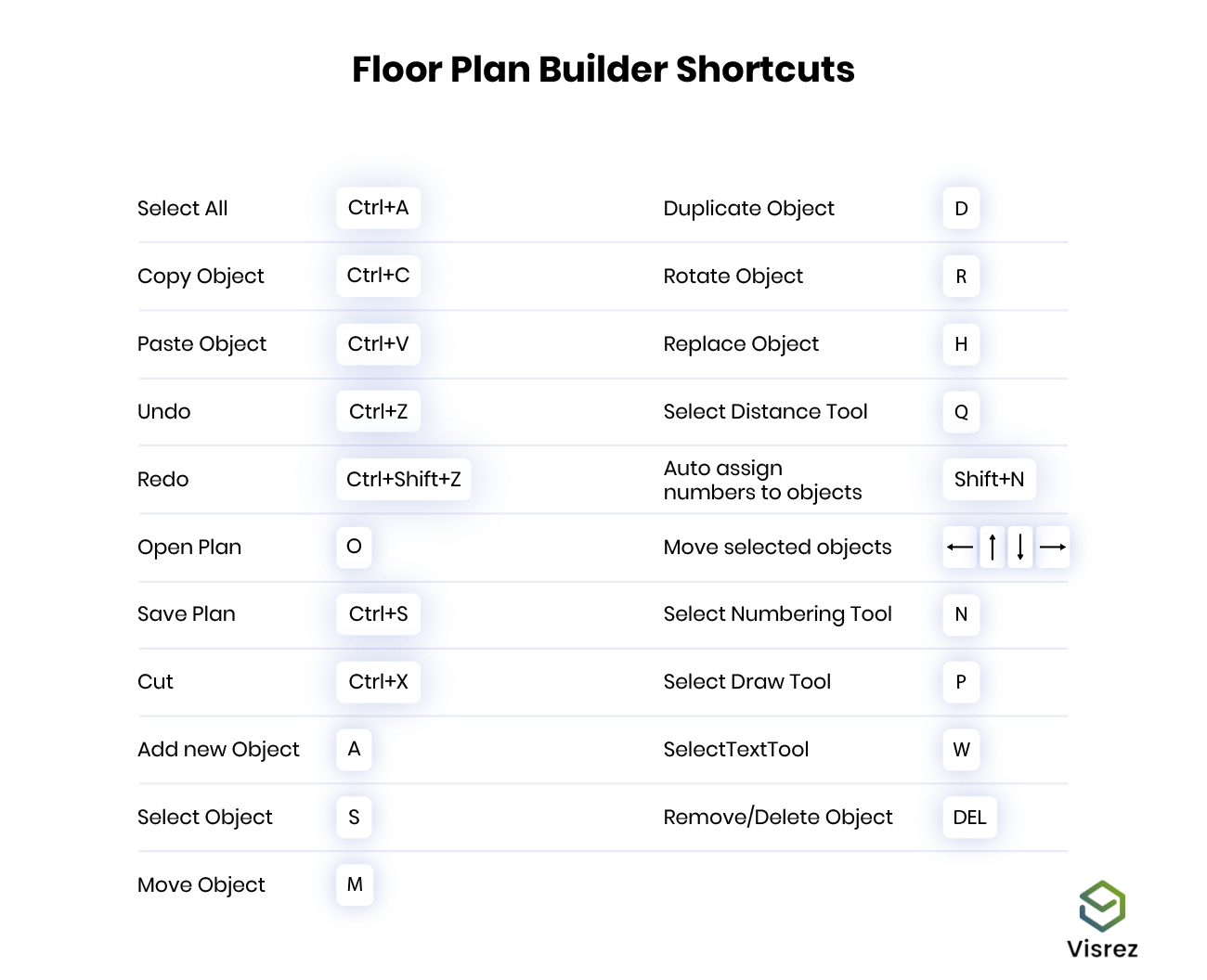

A list of shortcut keys is in the top right corner of your builder, we recommend learning these keys.

Lock Camera


The lock function allows you to stop the room from rotating and is an ideal way for users to work in 2D format by first clicking on the Top-Down button in the lower menu and then clicking on lock the camera. This holds the space in a 2D top down position allowing ubjects can be selected, moved, duplicated or rotated without the space moving. Users can zoom in / out of the space without moving it sideways which allows you to create perfect 2D plans.

Align Selection to View


Selecting objects with the mouse in a standard shaped space is simple but as we all know spaces can come in all shapes and size. If you need to diagram in an unusual shaped space the select tool can drag against the way you actually need it to go. For example in a diagonal or non-standard shaped space you may want the select tool to go in line with the room or furniture but it doesn’t. To solve this problem our team developed a feature to allow users to toggle the direction of the select tool in line with the direction of the space.

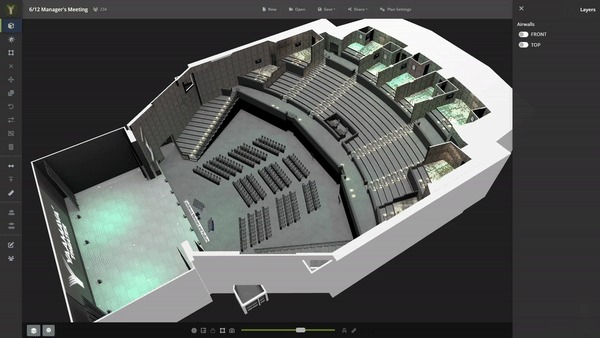

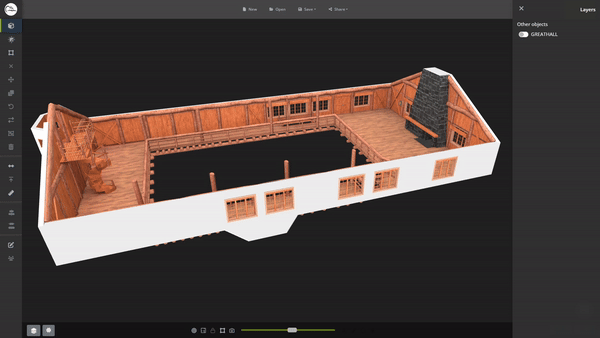

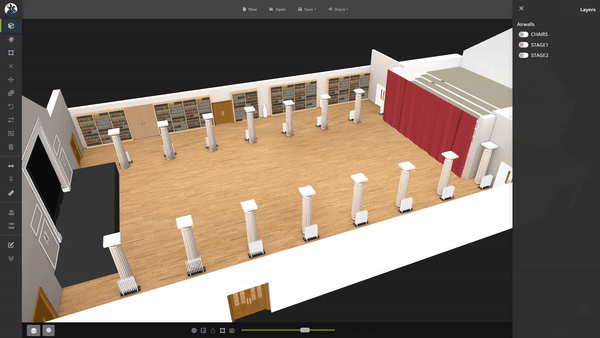

Layers & Airwalls

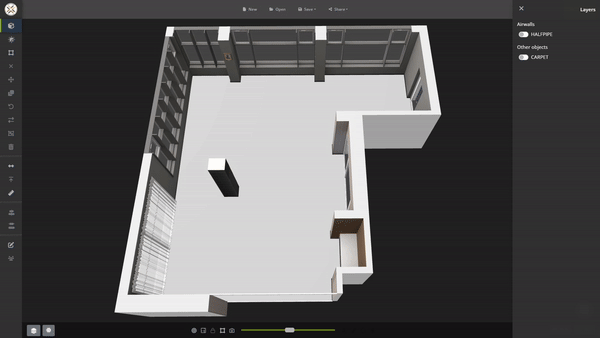

In the bottom left corner of the menu you will find the layers tool. This tool opens up a right side panel which contains a list of the elements within your space which can be turned on-off. Airwalls can be represented by a number or letter which allows them to be opened or closed. They can either be fully opened or closed. To partially divide a space it is recommended to use a room divider object from the Visrez library.

The carpets and flooring elements in a space can also be deactivated using the layers tool as quite often the design pattern on carpets can be quite busy and make it difficult to view the furniture in the plan.

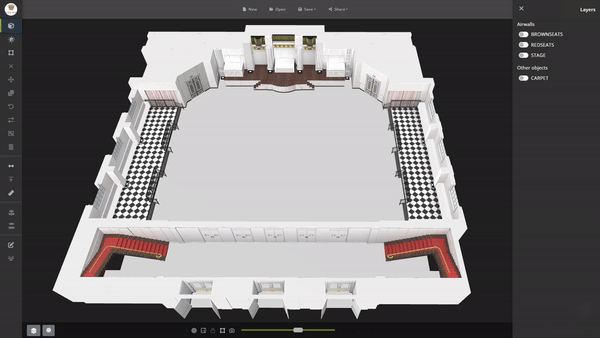

In some event spaces there can be fixed seating elements which can be removed as a block to allow different furniture to be set-up in those areas.

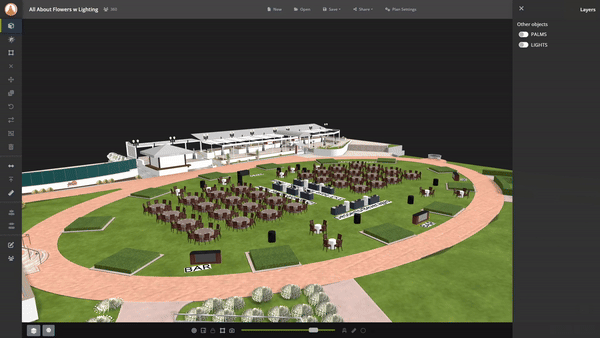

In outdoor event spaces layers can be used to switch off elements such as trees, string lights or fixed objects such as tents, gazebos or catering trucks to allow you to build the plan without the distraction.

Theme Settings


In the bottom horizontal menu there is a settings icon which does a couple of things. You can switch the builder background from black to white and adjust the level of sunlight in the plans based on the time of day. This is a great way to bring outdoor event plans to life by showing where the sun will be throughout the event.

To start a new event plan go to the Plans page, and select Space from the dropdown menu. This will open up a blank builder of that space to allow you to create a plan using an empty space. Inside your builder you can also find all the plans created by all team members by clicking on the Open button in the top menu.

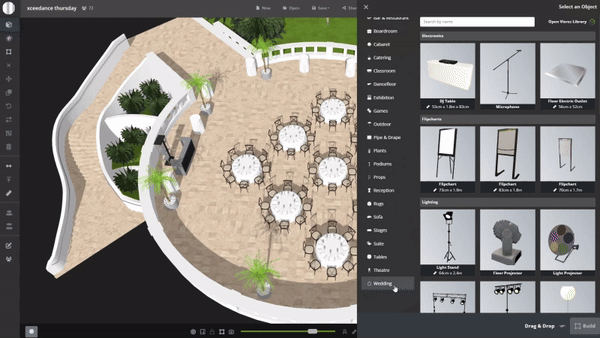

Visrez Furniture Library


The Visrez Library is built into every user account and shared with all team members. Any object from the Visrez library can be used in event plans. Objects added to the client collection are available to all team members. New objects are added weekly by the Visrez team based on client requests.

Clicking the + beside the object in the Visrez Library will add it to your collection. To remove an object from the collection or archived if already used in a plan you simple do the opposite and un-check the object. Clicking the + beside the object in the Visrez Library will add it to your collection. To remove an object from the collection or archived if already used in a plan you simple do the opposite and un-check the object.

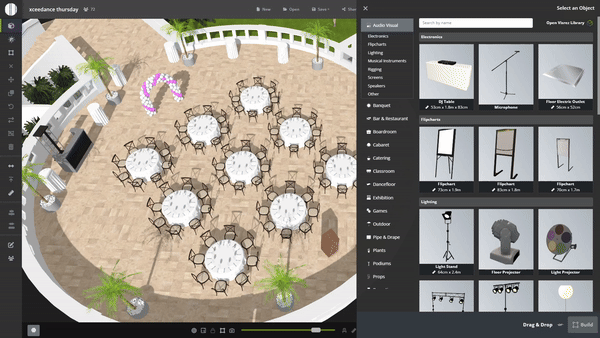

Client Collections inside the Builder


In the Main Menu the Add button (A) opens categories with objects which have been added in the client collection. The objects with different size and seating are selected from the dropdown menu and color options from the carousel slider.

Collaboration and Sharing

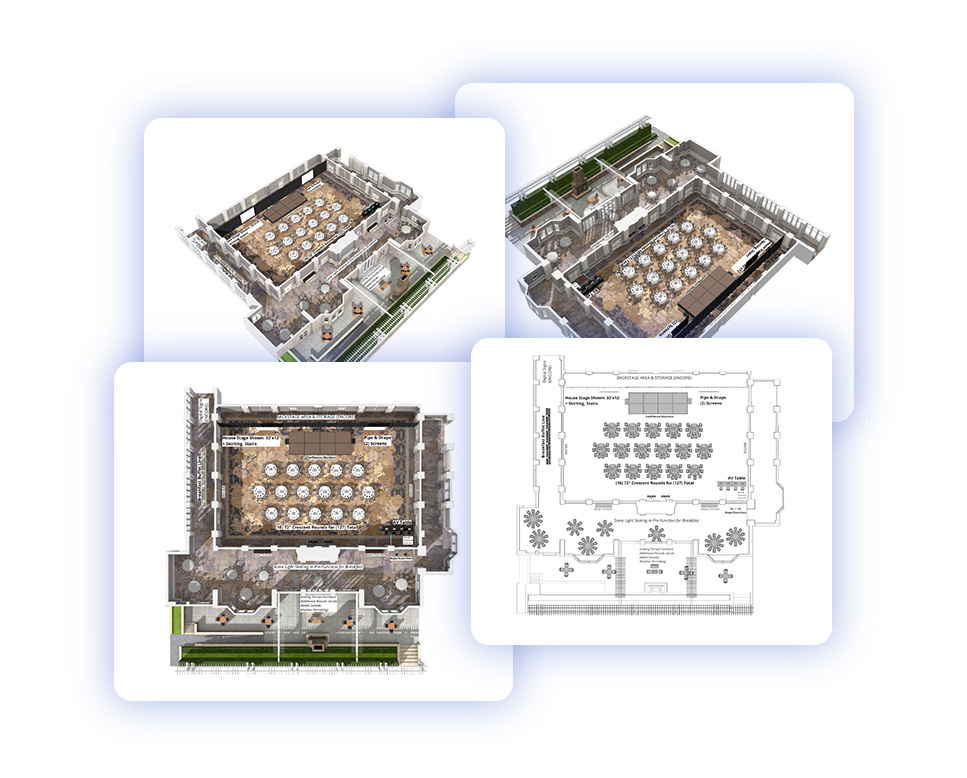

Visrez allows users to export plans in multiple formats including Interactive Shared Links, PDFs and PNG images. Plans can be exported in 3D with multiple views, 2D or black and white schematic format. You can include notes, equipment , table numbers, dimensions and other information. PDFs have a range of views and elements which can be added to all PDF exports. Floor Plan Builder exports all come with a built in link to the shared plan so all your client needs to do is click to load the interactive version. Any changes made in the editor appear immediately in the shared version so if you update the plan you don’t need to share a new link, the client just refreshes to see the latest version.

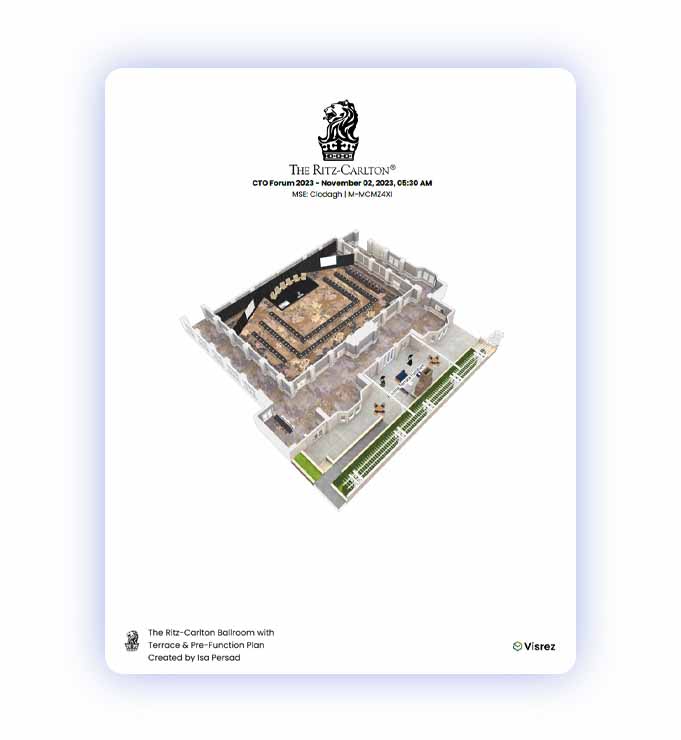

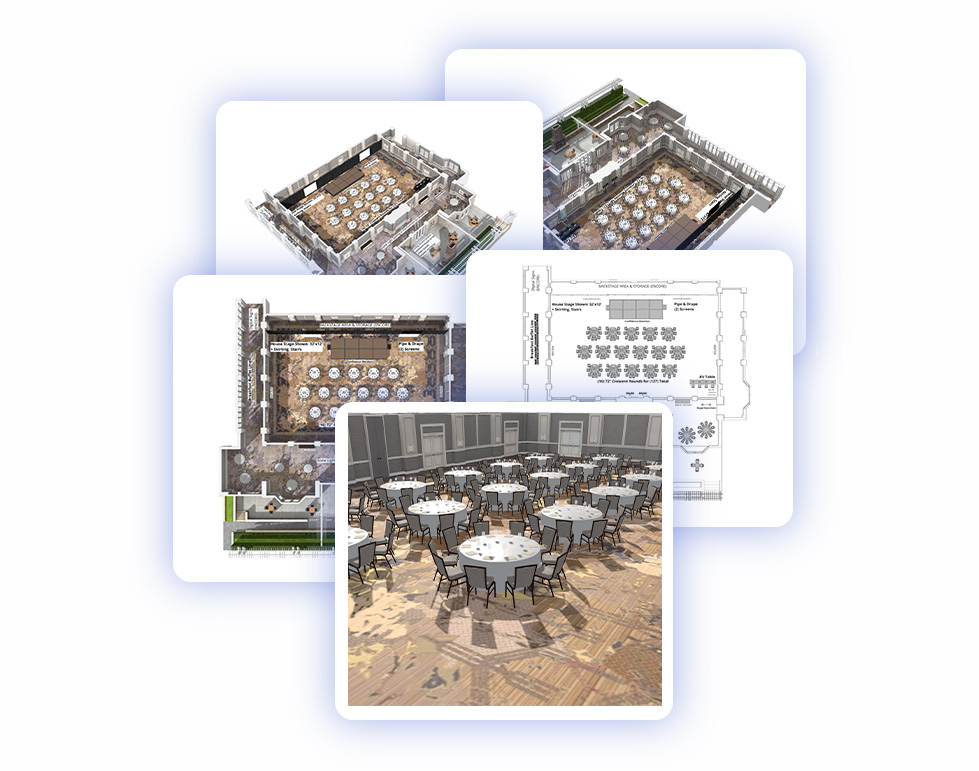

3D, 2D, Colour and Black & White


Visrez gives you the formats you need to communicate effectively to all stakeholders. Plans can be exported in full color 3D or 2D Black and White in the same PDF. From a sales perspective the 3D version is more impressive but many operations teams prefer to work from black and white format. All view types exported in a PDF will link to the interactive plan by clicking on the diagram.

Equipment Breakdown Page


Users can export a breakdown of all the furniture used in the event set up along with a thumbnail image in a separate table. This breakdown can be included in your PDF export or on its own as a separate PDF. This is a really useful way to provide both the client and the operations team with a summary of all the furniture and staging props required in any event plan. This information can be used like a checklist for the set-up team to make sure they have all the necessary elements in place for the event.

Plan Settings Information


Additional event information such as Date, Time, BEO , Notes can be added to the PDF under the plan settings. This is displayed below the client logo at the top of the PDF exports providing a reference to the BEO or Client details in the PDF distributed to the team. The Plan settings also marks if a plan has been client approved.

Shared Links

The Shared Link allows your client to view, approve or request edit access to any builder plan. This is the fastest way to share an event plan with a client or partner. Shared links update in real time so if you make a change to your plan all your client has to do is refresh to get the most up to date version. You do not need to resend a new link any changes to the plans update in real time.

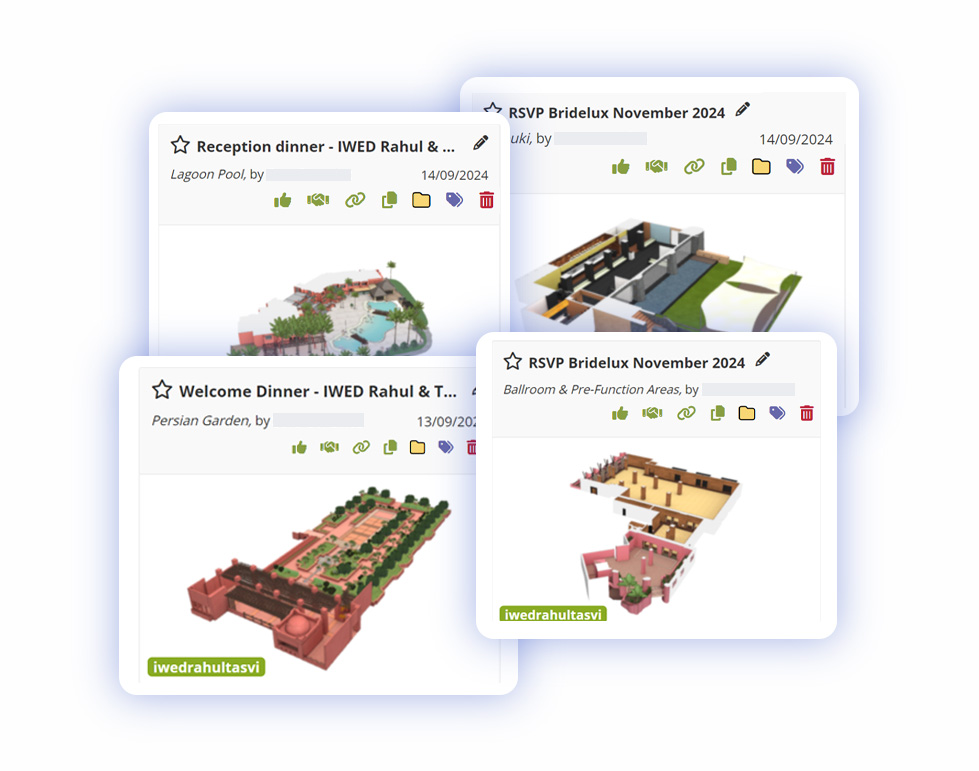

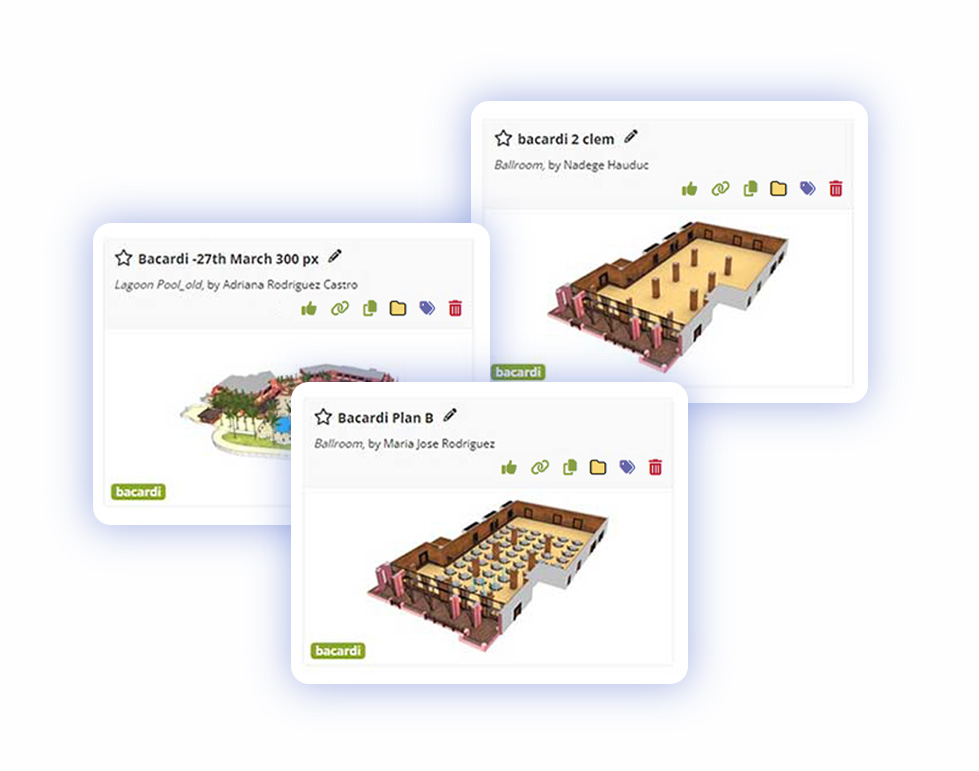

Sharing With Tags


Tags are displayed on the plans page and you can filter all tags in the dropdown controls at the top of the page. Tags are a great way to organize plans by respective client names rather than creating sub-folders within your account you simply tag the plan with the client name and then you can filter plans by that tag.

Users can invite other team members to collaborate on the same plan within their accounts by using the Share > Team option. This allows multiple users in the same team to work together on any event plan once they are invited by the plan creator. Users can still copy another user’s event plan but if you need to work with colleagues on the same event plan its best to share to other members the plan. To do this click on Share > Team and select the users from the right sidebar to invite them to the plan. When a plan is shared amongst team members an icon is displayed on the /plans page to indicate it is shared amongst team members.

Sharing Multiple Plans Outside Visrez


Visrez generates a URL for the tag so you can send a link to your client which displays all the plans tagged for their event. Plans can be shared outside Visrez without the user needing to have an account. So if a client is considering multiple spaces you can share a page outside your account with all the plans in all spaces.

Event Plan Approvals


Getting client approval is vital to ensure the smooth set-up of an event and Visrez comes with a built-in approval feature where clients can formally accept their event plan on the shared link. Once a plan has been approved, both owner of the plan and client are notified by email and the plan is marked in your account.

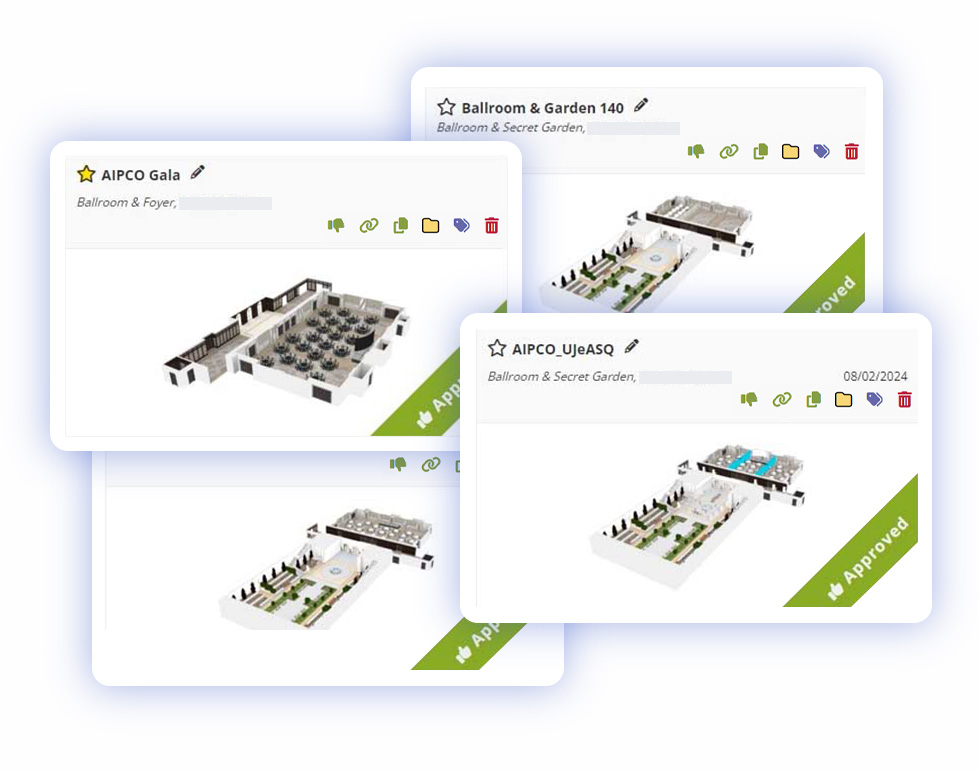

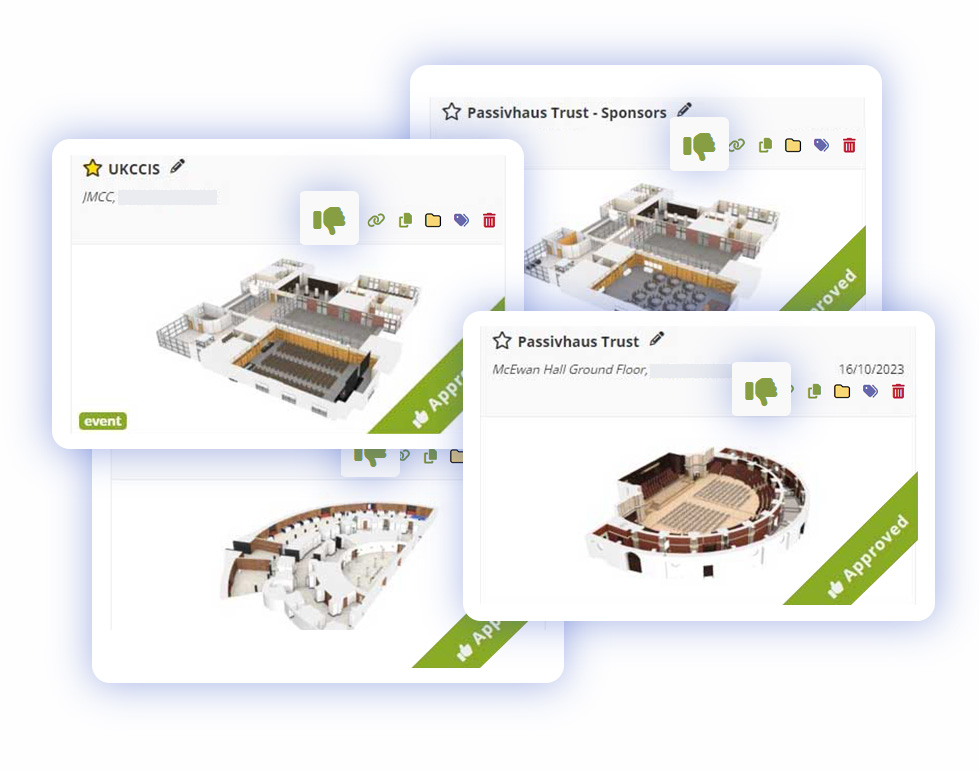

Revoke approval
Approvals can be revoked from the plan controls.

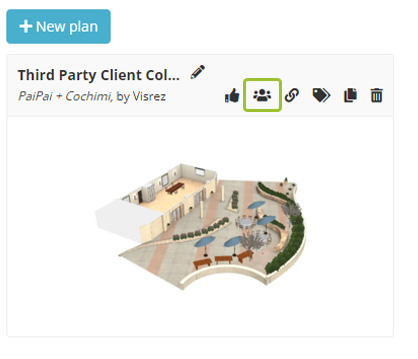

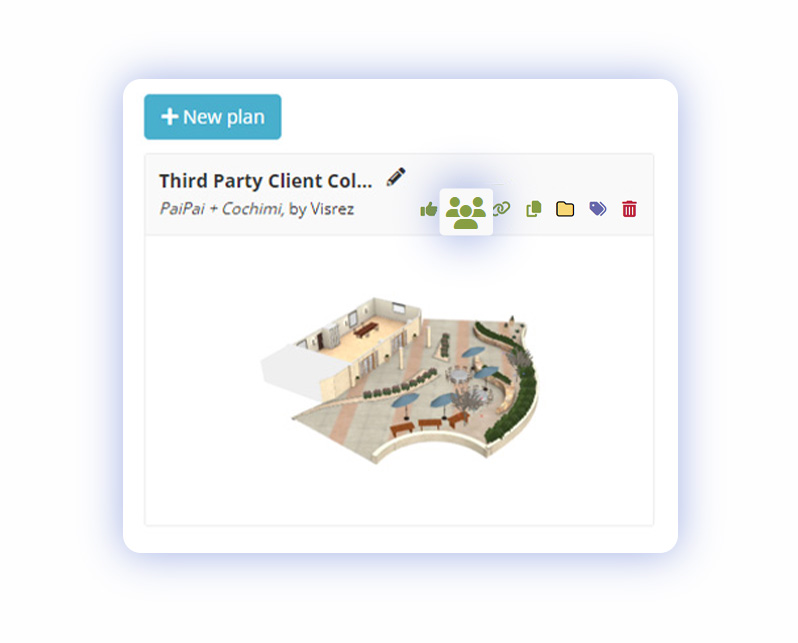

Inviting Event Planners and Outside Partners


Event planners and outside partners can be invited to your team’s Visrez account to edit plans which have been shared with them. This allows your team to collaborate with outside event planners and third party suppliers on any Floor Plan Builder diagram. Partners can be invited to plans by any team member and once the partner has registered their account they have access only to the plans shared with them.

Partners do not have access to the Visrez library or any other areas of your team account. Planners & Partners cannot select furniture or objects from the Visrez library but can use the client collection.

To invite an event planner or third partner to your plan select the Share > Partner option from the Share menu in the top of your builder.

Clicking on the Share > Partner option will display a list of the registered partners who can be invite to collaborate on the event plan.

Invite and Add Partners


Partners have to be registered on your Team account before they can be invited to collaborate on any builder plans. All users can invite partners to event plans by clicking on the Manage contacts & partners in lower right hand side of the homepage. To add a partner to your Team’s Visrez account just Click on the Plus + and enter in the Partner’s email address and save.

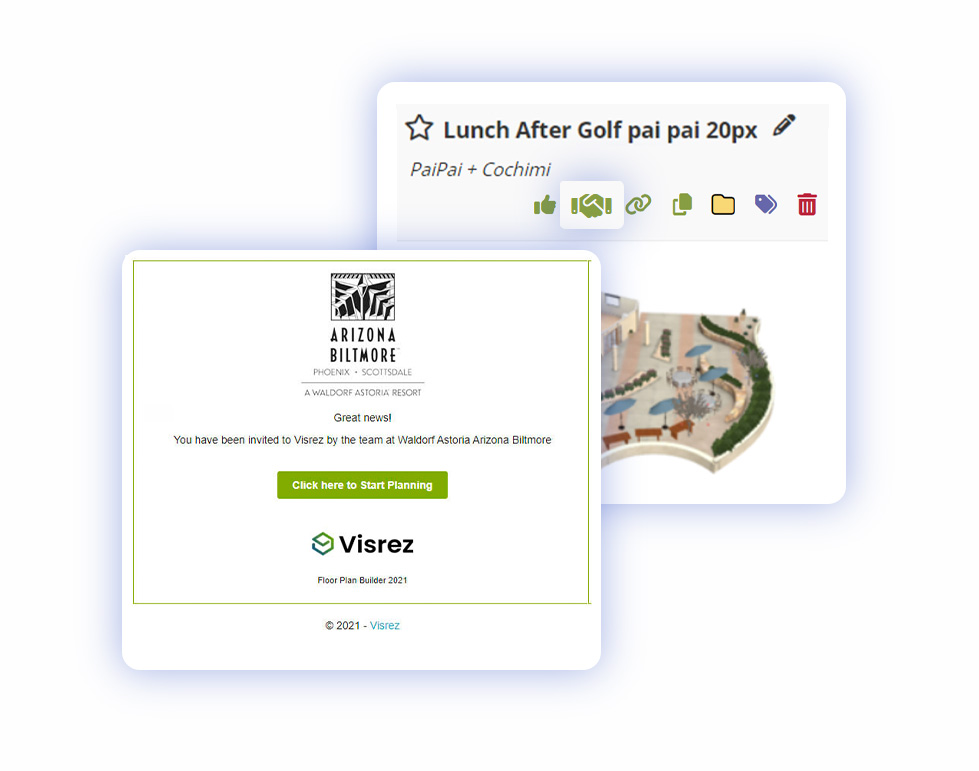

What Partners See


Partners receive an email notification displaying the branding of the property they have been invited to. Once they have registered on Visrez they see a /plans page displaying all the diagrams shared with them by the on-property contact. Planner accounts can include event plans across more than one property if they work with other venues which use Visrez and have been invited to those accounts. When an event plan is shared with a partner a new icon is displayed on the /plans page so you can tell it is shared outside the team.

Advanced Features

Stages


There are many ways to add stages to your event floor plans in the Builder. You can drop in a specific stage size from the Visrez library or create custom stages to any size using the Builder tools. It is fun to watch a stage being created to scale inside your 3D event plan. Select the stage object from the Library and choose between adding a specific number or Build Stages & Platforms options.

Dancefloors


There are a few ways to add dancefloors to your event floor plans in the Builder. You can drop in a specific dancefloor straight from the Visrez library or create a custom size using the Builder. The build option allows you to drag your mouse to the size you need and the dancefloor gets built automatically. Both options are shown in the animation and you can see how easy it is to create dancefloors of any size.

Rigging a Truss


To drop screens into the space from the ceiling you can use the Truss Rigging feature which allows you to hang horizontal trusses at variable heights over your space and hang screens (or lights) from those. This is done using the suspend to ceiling feature and the Move tool when active with + / – Hotkeys to increase or decrease the height. The initial height is parallel to the top of the walls for an indoor space or at the height of the tallest object in outdoor spaces.

Text Notes in Plans


The text tool is located at the bottom of the main menu which allows you to add notes onto your plans. This is a great way to mark up plans before sharing with clients for feedback and approval. To add notes write the notes in the text box and click on any point or object on the floor plan. Font, color and size can be adjusted in the sidebar along with the text box background to ensure it clearly stands out against the floor texture. Text can be placed on top of objects such as tables, stages and dancefloors.

Graphics Tool


Just click on the model and drag the arrow or Circles & Square options to save it onto the floor plan. This is a great way to indicate large event spaces and the drawings are displayed in PDF exports. Directional arrows allow you to indicate the flow of traffic in an event diagram to differentiate between entry and exits.

Client Logos in Plans


Sharing a 3D event plan featuring their logo on screen guarantees a great first impression and will help your venue stand head and shoulders above the competition. In the Audio Visual category of the Visrez library, you will notice the screens display an icon beside the + or check mark. This icon indicates that this object allows users to upload a logo for your plans. Once the editable object has been added to your collection you will see that the image icon is blue to indicate that you can upload a logo to your library and then select that logo from inside your builder.

Table Numbers


The first step is to draw on table numbers and save them in your plan. This can be done by either clicking on the tables one at a time or by clicking the left mouse button and drawing a path over the tables. Numbers must be saved before you can upload your list so once you are happy with the order click save.

Table Numbers can be rotated or styled to fit any room orientation.

Share > PDF Export Settings > Show Table Numbers > Tag Options.

Importing Guest Lists


Guest Lists can be added by either uploading a CSV file or by entering guests manually on a table-per-table basis. Importing a CSV file is a lot faster than entering the names one by one so we recommend this option. The guest list tool is only activated when tables have been saved to your event plan.

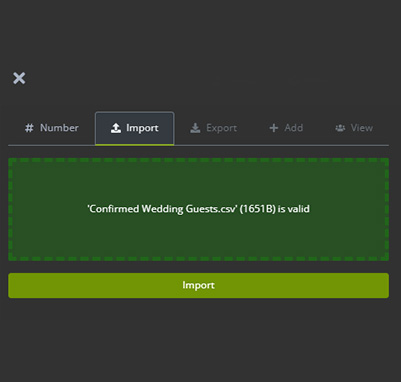

Importing Guest Lists from CSV


The quickest way to populate a guest list is to import from a CSV file. After table numbers have been saved you can then import a CSV file by dragging it from your computer or by clicking within the import area.

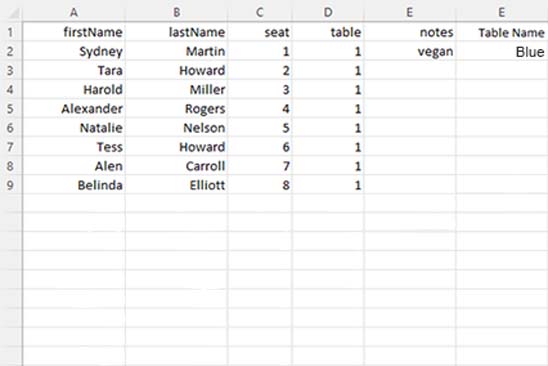

CSV files should be formatted as follows

Adding or Editing Guests without Import


Guests can also be added on a per-table basis by clicking the table and selecting the guests’ tool in the left side menu. Using the Add tool you can then manually enter guest names, and table names for each table in your plan. Once guests have been imported, all names in the plan are listed under the View tab.

Guest lists can be exported as a PDF under the Share > Export option

Exporting Guest Lists


Guest lists can be exported with the event plans or as a PDF from the share settings.

Copy & Paste Plans from One Space to Another


If you have created a plan in one space and would like to see how it looks in another space you do not need to remake the plan as you can copy and paste from one space to another.

In your Event Plan – CTRL & A (to select everything) and CTRL & C (to copy)

Open the new event space from the Plans Page (An empty space) CTRL & V to paste into that space.

All spaces have different dimensions so will need to adjust to fit using the Move and Rotate Tools.

Creating 3D Plans from CSV Files


Capacity charts can now be converted into 3D Event plans with one go. Users can generate 3D event plans for every space and set-up style just by uploading a CSV file to their account or by entering in the desired setups and capacities. Automating the creation of 3D Event plans is a massive timesaver for sales, catering and operations teams as they now have the ability to quickly generate an unlimited number of 3D Plans from a single CSV upload for each space.

How to Rig Lights


Not an everyday feature but a very nice option to impress your client by adding coloured lights onto screens, backdrops or walls to create some genuine atmosphere in your event plans. It is easy to do once you have selected the right objects from the library and these can be placed on the ground to hung from a truss depending on the plan.

Video Tutorials

Spacing Menu


Notes Menu, Guests & Table Numbers


Lock Camera


Event Set-Up Styles


Assets Required for Visrez

Visrez requires dimensions along with reference images.

Professional photoshoots are not necessary.

Reference photos can be taken with a phone.

Event spaces do not need to be set-up.

Capture photos from each corner of indoor or outdoor spaces.

Existing photos, virtual tours & videos can be included.

Account Management

Inside Visrez


On the dashboard you will see a chronological history of all the activity in your Visrez account from the beginning. As plans are saved they appear in the timeline and can be opened directly from there. From here you can access all the products which are activated in your account using the menu on the left hand side.

Plans Box


The plans box displays a breakdown of the plans per event space. The top bar displays the total number of plans created across all spaces. Clicking on any space loads the plans page.

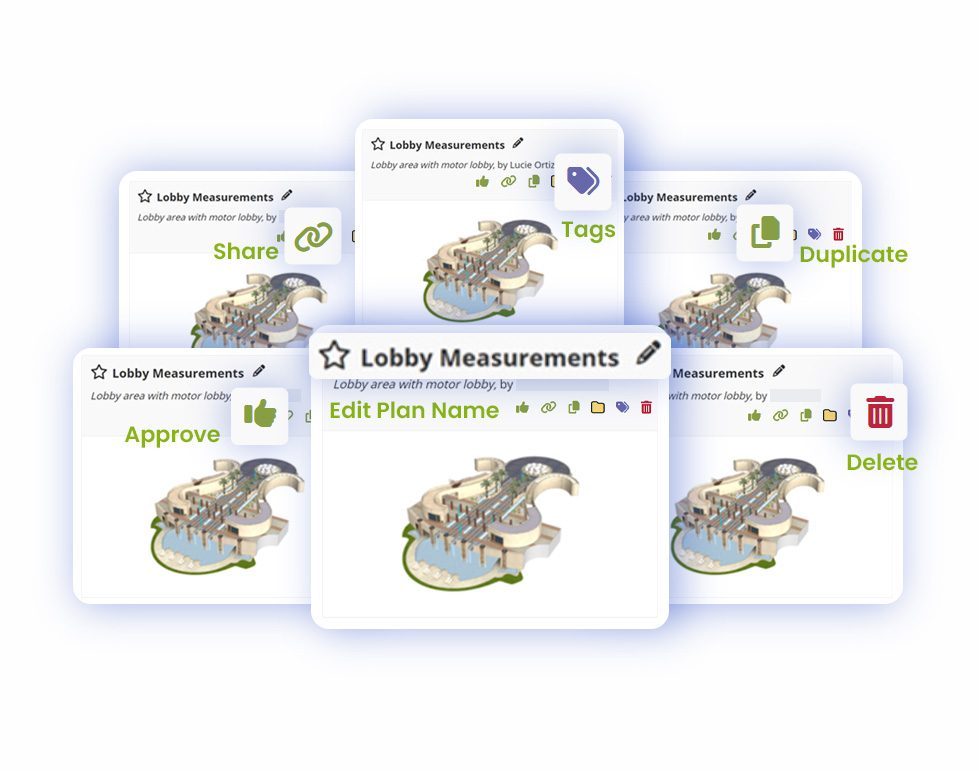

Plan Icon Guide


On the plans page have a number of controls available before you open an event plan in the builder

Edit Plan Name: The owner of a plan can rename it by clicking the pencil and then hitting enter.

Delete Plan
The Admin Contact on each Visrez account can delete or rename plans created by all other users.

Create a Copy
You can create a copy of any other user’s plan by clicking on the duplicate button below the event date.
Users can copy plans created by other team members and can rename or delete only their own plans.

Edit Tags
With tags, you can share a unique URL with your client showing all the plans across multiple spaces.
So if a group is using multiple spaces you can create a tag for that group and share a page featuring all their plans outside of your Visrez account. The remove tag option is located next to the tag name.

Share Link
From the shared page the user can open any of the event plans and if they have been set up as a partner they are able to edit any of their plans. Remember anyone with access to the Shared Page Shortcut will be able to view the plans but only partners can edit plans.

Approve Event Plans
Once a plan has been approved it is marked with a green icon on the /plans page so it is clear to the team.

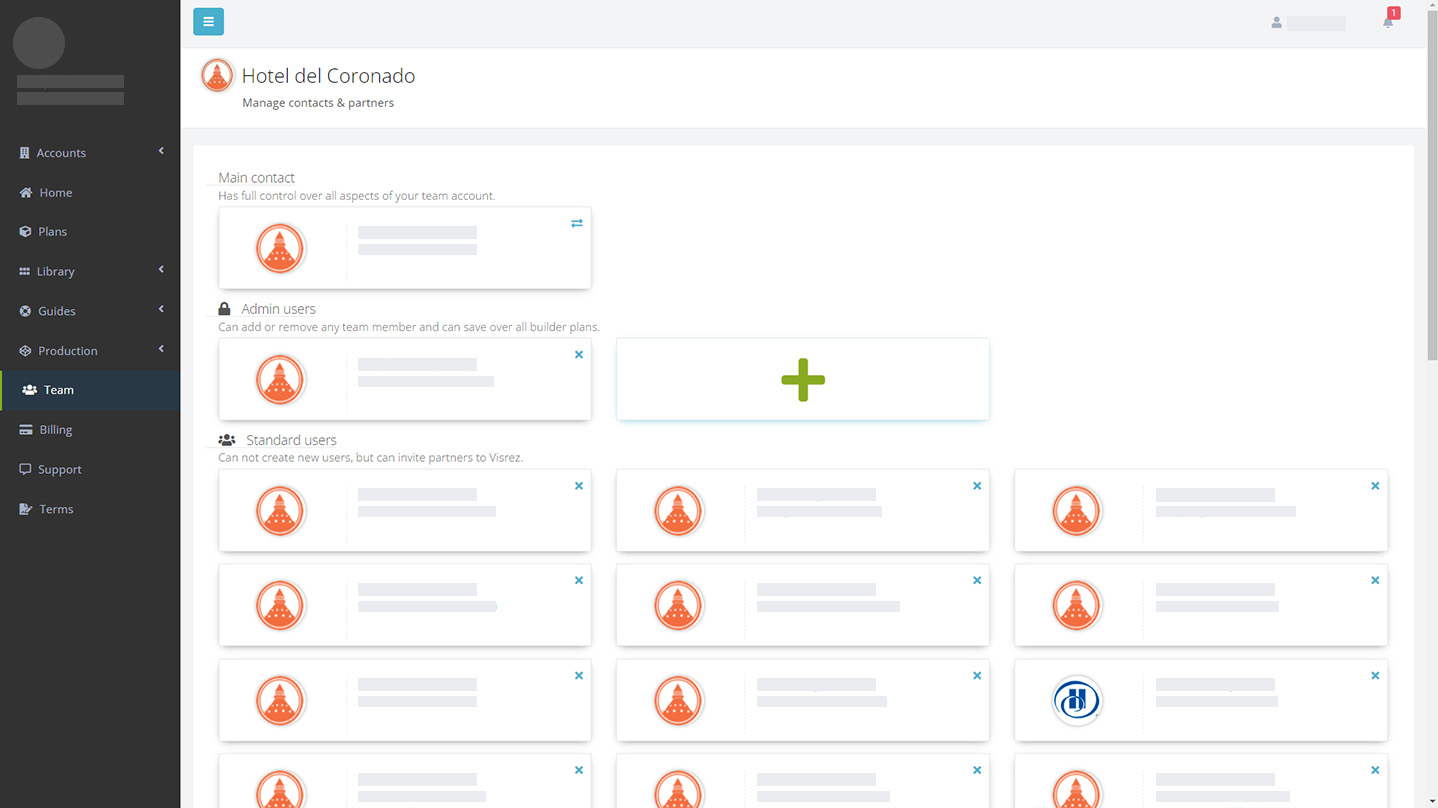

Visrez Account Administrators


The admin users on your team can manage all aspects of the Visrez account. There are no restrictions to the number of users you can have in your team account but only admins can delete users from Visrez. Visrez accounts can have multiple admin level users. To add a new user to your account just enter their email address and they will receive an email signup immediately.

Personal Account & Managing Notifications


Users can update their profile in the top right-hand corner and disable system notifications. This includes the weekly asset reminder emails which are automatically sent during production when assets are outstanding. It also includes the weekly usage reports for embedded files which are displayed in client sites. If you no longer wish to receive these emails you can disable them in your account here.

Creating Accounts & Adding Spaces


The Overview menu shows list of all accounts. To add a new account use the Create New Account button. Details for the account can be entered – Description, Permalink, Brand and Country.

Creating Spaces


All categories can be listed from the Production menu. Spaces can be added from the Add Spaces button.

Uploading Assets


All assets can be uploaded from the Home menu in your account. Choose the Upload button then drag and drop or select photos to upload. Virtual links and dimensions will help to create a more realistic space.

If there are missing Photos or Diagrams in the 3D Models menu will be displayed what exactly is needed and an email will be send. Click on the Upload button to add more assets.

Once everything is uploaded production process will start.

When a model is ready you can approve or send it for revision and renovation.

Integrations

Sales&Catering.com serves over 10,000 users in the hospitality sales community with a strong reputation for building products that just work. The partnership between Visrez and SalesAndCatering.com has had a meaningful impact on the industry standards informing the event and meeting planning process.

This integration allows users to automatically generate a 3D Event Plan in Visrez whenever they create a BEO in STS Cloud, with updates automatically reflected to ensure continuity and streamline the process. Planners and sales teams can easily toggle between proposals, contracts, menus, venue maps, and any other element of an upcoming event via a singular dashboard.

“The integration between Visrez and STS Cloud has been a game-changer for our properties. Offering guests a truly luxurious, memorable, and immersive experience is a core part of our offering and brand promise. With that in mind, having a sales tool that can seamlessly create immersive, photorealistic event plans has helped us ‘wow’ prospective clients and win more business”.

Dirk Beck, Director of Group Sales & Catering at The Loren Hotels

Questions
  • What if a space can be divided multiple times ?

    If a space can be subdivided multiple times using airwalls these are not counted as new spaces. It doesn't matter how many dividing walls in the space, you pay for just one space regardless of the dimensions or details. Visrez has generated photorealistic 3D Models of thousands of events spaces worldwide, so no interior is a problem for our team to recreate.

  • Are Lobbies, Foyers counted as additional spaces ?

    We includes lobbies, foyers, terraces, patios, lawns and connected spaces as part of the model however full floors are not considered single spaces. Whilst it is not an exact science, we are reasonable and do our best to provide great value for money as our clients will attest.

  • Can we create plans using the subdivided sections on their own ?

    Yes, we provide the subdivided spaces within the same fee so if you want to create plans in Section A, B, C or D individually you can do so at no additional cost as you will have the separate builder models.

  • Can we start with one space and add more later ?

    Absolutely, you can add new spaces at any time. Many of our clients started with a single space and added more as they saw the results of sharing Visrez plans with their clients.

  • What if I can’t find our exact furniture in the Library ?

    If the exact furniture does not exist in the Visrez library our team will create the furniture and add to the library at no additional charge. As the library is shared with all our users it makes it valuable if everyone has access to an extensive library of furniture.

  • Can my clients collaborate on the plans too ?

    Yes, clients can collaborate on event plans in Visrez once they have been added as 'Partners' in your account. This is explained in detail in the Visrez user guide under Collaboration & Sharing.

  • What happens if we redesign or renovate our spaces ?

    Event Space renovations and redesigns are included in the annual fee so if you update your spaces we match the new interiors. This can be done before construction is completed if interior design guides are provided.

  • What if our event spaces are not built yet ?

    Visrez can create event space models during preopening if enough details can be provided from the architects or interior designers. This will give your team a headstart with preopening sales and the spaces can be updated to match the finished interiors when those are ready.

  • Are there limits to the number of users in Visrez ?

    There is no restriction to the number of users you can have in Visrez. Admin users on each account can add or remove team members without contacting Visrez support. As far as we are concerned the more users you have on your team the better which is why we don't charge per user account.

  • Can Visrez use our Virtual Tour to build our spaces ?

    Yes, if you have a virtual just post the link in your account and this will be sufficient for our team to recreate the space exactly to scale and detail.

  • Are there any Setup fees for Visrez ?

    There are no set-up fees associated with Visrez. We charge a per space / year fee which includes the creation of the spaces.

  • Does Visrez offer live training sessions ?

    Live training sessions are arranged for your team once the spaces are activated and ready to use. These usually take 30 minutes to one hour and cover all aspects of using Visrez.

  • Does Visrez charge for Training Sessions ?

    No, there is no charge for live training sessions. We enjoy connecting with users and find training sessions are a valuable way to learn how they interact with the tools.

  • How long does it take to get activated on Visrez ?

    Once good quality reference assets are provided our team will generate a draft 3D Model of your space within a few days which is uploaded to your account. All members of your team will be notified once the event space is ready for review.

  • Once a space is approved how long does it take to get started ?

    Once your team has approved the space the Floor Plan Builder will be activated in your account within 1-2 working days so your team can start making and sharing diagrams quickly.

  • Can we add a Visrez Virtual Tour at a later date ?

    Absolutely yes, and this happens a lot. Once we have created the event space models you can order a photorealistic virtual tour of that space without an on-site photoshoot required.

  • Do we need to sign a contract ?

    A copy of your agreement is available inside your account under the contract section. Spaces are activated on an annual basis and new spaces can be added at any time. Visrez does not impose multi-year agreements or built-in annual price increases. With Visrez, what you see is what you get and this is what our users love about the platform.

Pricing

Floor Plan Builder allows non-technical users to create professional standard 3D event plans. It is priced on a per-space / year basis rather than per user. Each account can have unlimited users, partners and full access to the Visrez library which contains over ten thousand 3D furniture models.
